MK8 Assembly Section Field Effect Transistor Cigarette Machine Parts

Ask Lasest Price
Brand Name :	Upperbond
Model Number :	Maker
Certification :	CE, ISO
Price :	Negotiable
Payment Terms :	50% front payment
Supply Ability :	10000 pcs/month
Delivery Time :	5-8 days

Add to Cart

Product Details
Company Profile

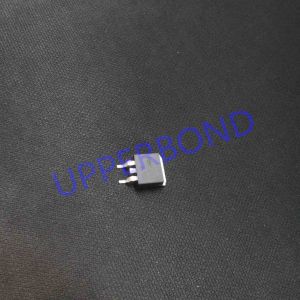

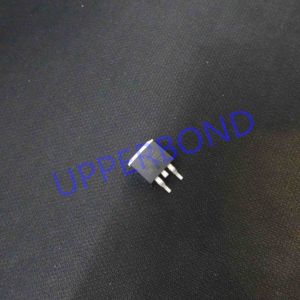

MK8 Assembly Section Field Effect Transistor Cigarette Machine Parts

IRFZ44NSTRLPBF Transistor

A transistor is a semiconductor device used to amplify or switch electronic signals and electrical power. Transistors are one of the basic building blocks of modern electronics. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit.

1. Features

• Advanced Process Technology

• Surface Mount (IRFZ44NS)

• Low-profile through-hole (IRFZ44NL)

• 175°C Operating Temperature

• Fast Switching

• Fully Avalanche Rated

• Lead-Free

2. Absolute Maximum Ratings

	Parameter	Max.	Units
Id @ Tq = 25°C	Continuous Drain Current, Vgs @ 10V	49	A
lD @ Tc = 100°C	Continuous Drain Current, Vgs @ 10V	35
Idm	Pulsed Drain Current ①	160
PD @Ta = 25°C	Power Dissipation	3.8	W
PD @TC = 25°C	Power Dissipation	94	W
	Linear Derating Factor	0.63	W/°C
Vgs	Gate-to-Source Voltage	±20	V
Iar	Avalanche Current①	25	A
Ear	Repetitive Avalanche Energy®	9.4	mJ
dv/dt	Peak Diode Recovery dv/dt ③	5.0	V/ns
Tj	Operating Junction and	-55 to + 175	°C

3. IRFZ44NS/LPbF

	Parameter	Min.
V(BR)DSS	Drain-to-Source Breakdown Voltage	55
△V(BR)DSS 仏 Tj	Breakdown Voltage Temp. Coefficient	—
RDS(on)	Static Drain-to-Source On-Resistance	—
VGS(th)	Gate Threshold Voltage	2.0
gts	Forward Transconductance	19
bss	Drain-to-Source Leakage Current	—
bss	Drain-to-Source Leakage Current	—
loss	Gate-to-Source Forward Leakage	—
loss	Gate-to-Source Reverse Leakage	—
Qg	Total Gate Charge	—
Qgs	Gate-to-Source Charge	—
Qgd	Gate-to-Drain ("Miller") Charge	—
td(on)	Turn-On Delay Time	—
tr	Rise Time	—
td(off)	Turn-Off Delay Time	—
tf	Fall Time	—
Ls	Internal Source Inductance	—
Cjss	Input Capacitance	—
Coss	Output Capacitance	—
Crss	Reverse Transfer Capacitance	—
Eas	Single Pulse Avalanche Energy®	—
